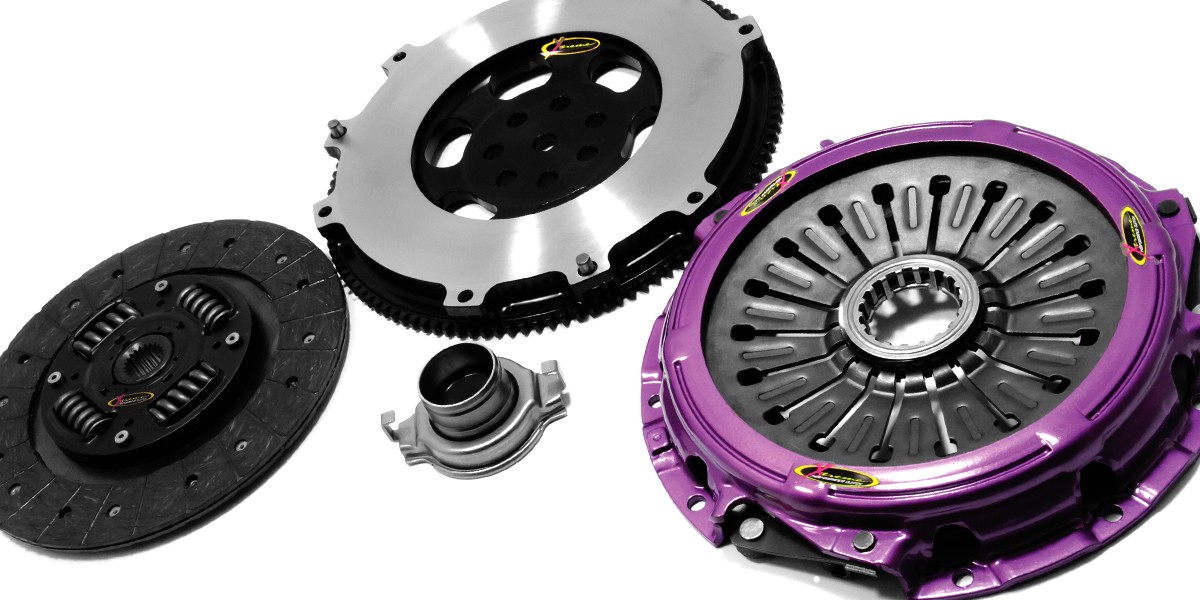

Ceramic clutches have become a staple in the realm of motorsports, renowned for their ability to handle high levels of heat and stress that come with high-performance racing. These clutches are essential for ensuring that race cars perform optimally under the extreme conditions they are subjected to on the track. This article delves into the different types of ceramic clutches used in traditional manual transmission race cars and their specific purposes.
Types of Ceramic Clutches
Single-Plate Ceramic Clutches
Single-plate ceramic clutches are the most basic type, featuring a single friction disc made of ceramic material. These clutches are often used in racing scenarios where simplicity and reliability are paramount. They offer a high level of performance due to the ceramic material’s ability to withstand high temperatures and reduce fading under intense use. However, they may not be as smooth as multi-plate designs, which can make them less suitable for scenarios where fine control is crucial.
Multi-Plate Ceramic Clutches
Multi-plate ceramic clutches consist of multiple friction discs stacked together. This design increases the clutch’s contact surface area, allowing for greater torque transfer and better heat dissipation. Multi-plate clutches are particularly beneficial in high-torque applications, such as drag racing and endurance racing, where the clutch is subjected to extreme loads and needs to maintain performance over prolonged periods. The increased friction surfaces also improve engagement smoothness and longevity.
Twin-Plate Ceramic Clutches
Twin-plate ceramic clutches, a subset of multi-plate clutches, specifically feature two friction discs. This design balances the benefits of single and multi-plate clutches by offering improved torque capacity and heat management without excessively complicating the clutch system. Twin-plate clutches are popular in various motorsport disciplines, including rally and circuit racing, where both performance and durability are critical.
Triple-Plate Ceramic Clutches
Triple-plate ceramic clutches take the multi-plate concept further by incorporating three friction discs. These clutches are engineered for the highest levels of torque transfer and heat management, making them ideal for the most demanding racing applications. Triple-plate clutches are often found in high-horsepower vehicles, such as those used in professional drag racing and high-level circuit racing. They provide the utmost reliability and performance, though they can be more challenging to modulate compared to single and twin-plate designs.
Purpose of Ceramic Clutches in Motorsport
The primary purpose of ceramic clutches in motorsport is to manage the immense stresses and temperatures generated during high-performance driving. Here are some key reasons why ceramic clutches are favored in racing:
Heat Resistance
Ceramic materials can withstand significantly higher temperatures than organic or metallic clutch materials. This is crucial in racing, where the clutch undergoes repeated and intense engagement and disengagement, generating substantial heat. The ability to endure high temperatures helps prevent clutch fade, ensuring consistent performance throughout a race.
Torque Handling
The high friction coefficient of ceramic clutches allows them to transfer more torque from the engine to the drivetrain. This is essential for race cars, which often produce much higher torque than standard vehicles. The enhanced torque handling capability ensures that the power generated by the engine is effectively transmitted to the wheels, contributing to better acceleration and overall performance.
Durability and Longevity
Ceramic clutches are known for their durability. The tough ceramic material is less prone to wear and deformation compared to organic clutches, making them ideal for the harsh conditions of motorsport. This durability translates to a longer lifespan, reducing the frequency of clutch replacements and maintenance during a racing season.
Weight Reduction
In motorsports, reducing weight is a constant goal to improve vehicle performance. Ceramic clutches are typically lighter than their organic counterparts, contributing to an overall reduction in drivetrain weight. This weight savings can lead to better handling and faster response times, providing a competitive edge on the track.
Ceramic clutches play a vital role in the world of motorsport, offering superior heat resistance, torque handling, durability, and weight savings. The various types of ceramic clutches, including single-plate, multi-plate, twin-plate, and triple-plate designs, each serve specific purposes depending on the demands of the racing discipline.
By understanding the benefits and applications of each type, teams and drivers can make informed decisions to optimize their race car’s performance and reliability. In the high-stakes environment of motorsports, ceramic clutches are indispensable components that contribute significantly to achieving victory.
